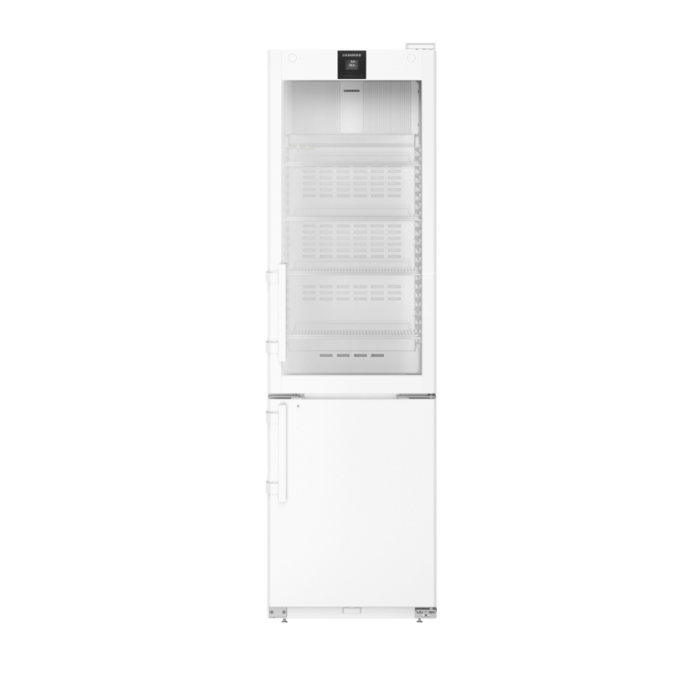

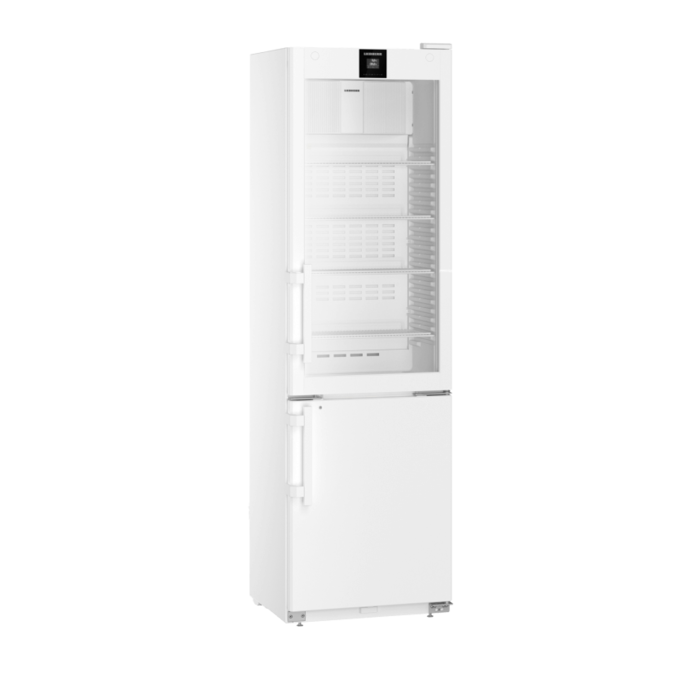

LiebherrSCFvh 4032 Perfection
- Click here for all specifications of the Liebherr SCFvh 4032
- Click here for the user manual of the Liebherr SCFvh 4032

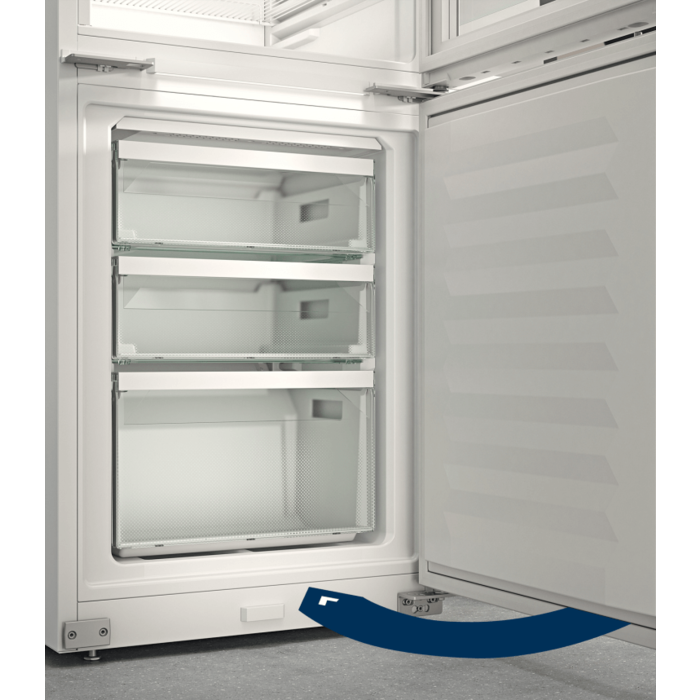

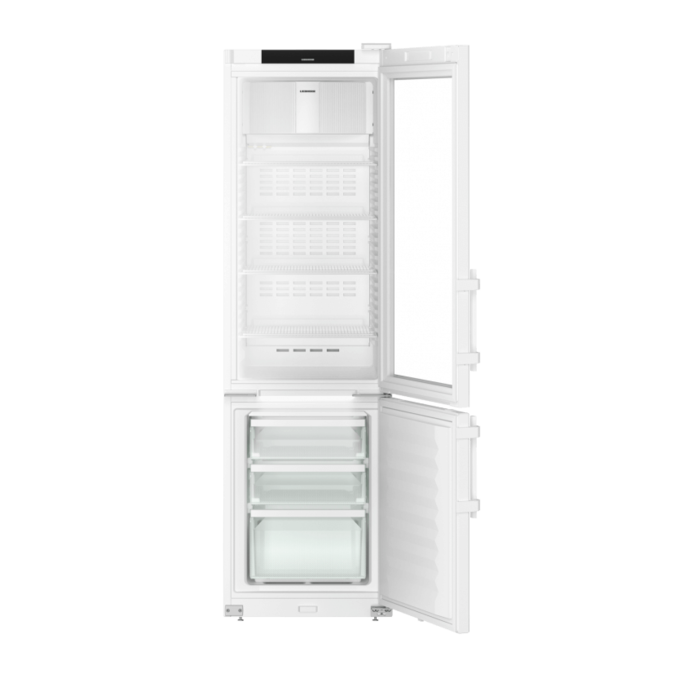

The Liebherr SCFvh 4032 is a steel explosion-proof dynamic refrigerator and freezer combination. Thanks to NoFrost, ice does not form and defrosting is no longer necessary. At a 90° opening angle, the automatically closing door remains open for easy loading and unloading. If the door is open for too long, the optical and acoustic alarm ensures that this is quickly noticed and can be resolved.

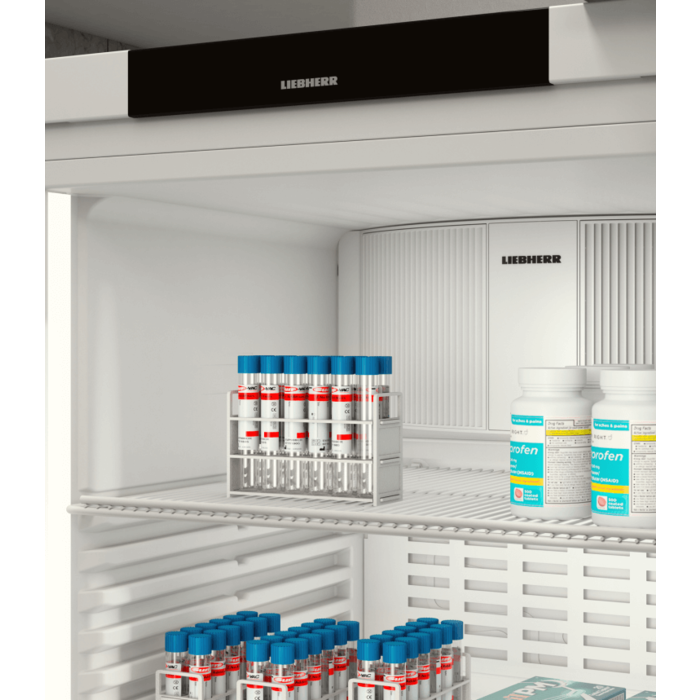

This laboratory refrigerator is suitable for the professional storage of products at a temperature between 3 °C and 16 °C in the refrigerator compartment and between -9 °C and -30 °C in the freezer compartment. Typical products that can be stored are samples for research, reagents, laboratory inventory, etc. The device complies with the regulations of DIN 13277 for refrigerated and frozen storage equipment for laboratory and medical applications.
When storing valuable or temperature-sensitive substances or products, the use of an independent, permanently monitoring alarm system is required. This alarm system must be designed in such a way that any alarm condition is immediately recorded by a responsible personwho can then take appropriate action
The temperature in the interior of the device isset to the required +5 °C as standard and can be adjusted. The minimum permitted room temperature at the installation location is 10 °C.
Cooling temperature setting range | +3°C to +16°C |
Maximum fluctuation cooling section | 2.9°C |
Gradient cooling section | 3.3°C |
Warm-up time from +5 °C to +10 °C (empty, +25 °C TU) | 50 |
Warm-up time from +25 °C to +5 °C (empty, +25 °C TU) | 30 |
Freezing technology | NoFrost |
Freezing system | Dynamic |
Freezer compartment defrosting system | Automatically |
Freeze temperature setting range | -9°C to -30°C |

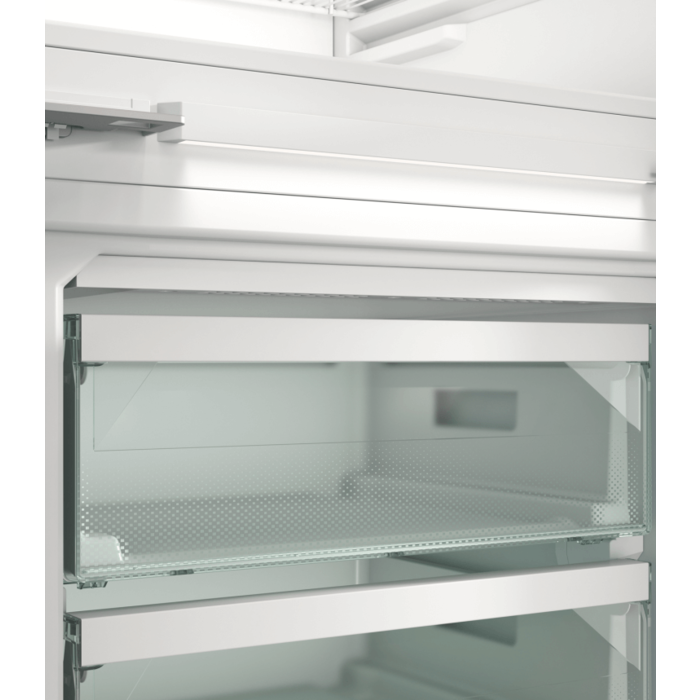

Number of freezer drawers | 3 |
Maximum fluctuation in freezer section | 7.6°C |
Gradient freezer part | 4.3°C |
Warm-up time from -20 °C to -15 °C (empty, +25 °C TU) | 55 |
Cooling time from +25 °C to -20 °C (empty, +25 °C TU) | 180 |
Number of shelves in the freezer compartment | 3 |
Material of the freezer compartment support tray | Glass |
Load capacity of freezer compartment shelves | 40kg |
Number of drawers with compartment height | 2x 10.5, 1x 22.9 |
Number of drawers with compartment height | 2x 10.5, 1x 22.9 |
Freezer compartment lighting | LED-lighting |
- Brand: Liebherr
- Article number: SCFvh 4032-20
- DIN 13277:
- Exterior dimensions (H/W/D): 2044 x 597 x 654mm
- Gross capacity, total: 420 l
- Under counter:
- Door/Cover material: white
- Energy consumption in 24h: 1.3kWh / 24h
- Build in between:
- Temperaturerange: +3°C tot +16°C

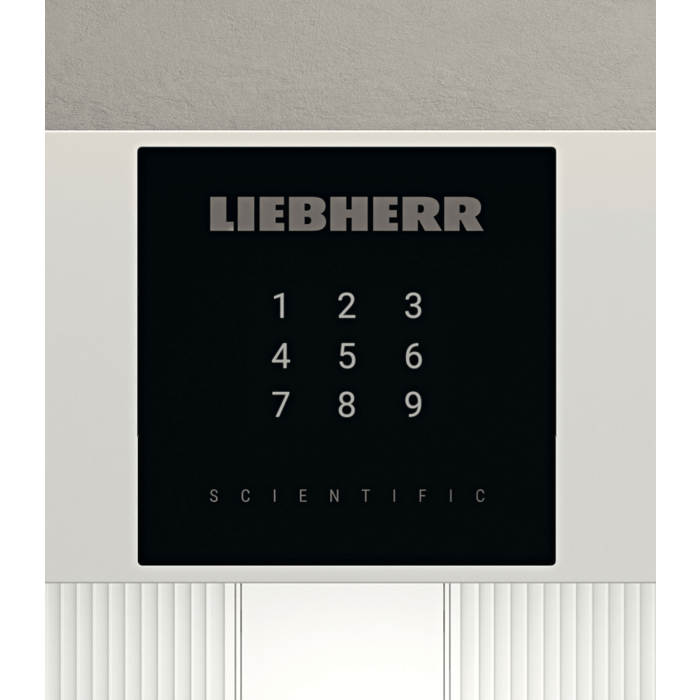

- Doorlock:

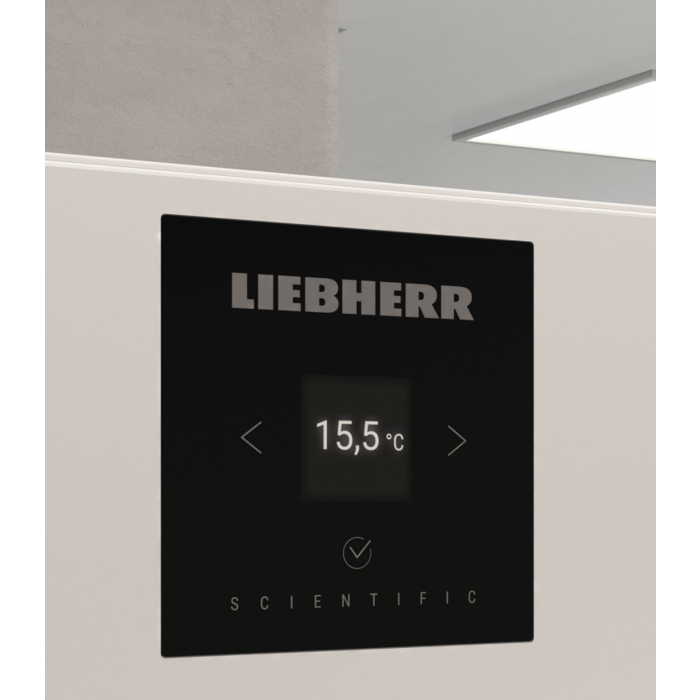

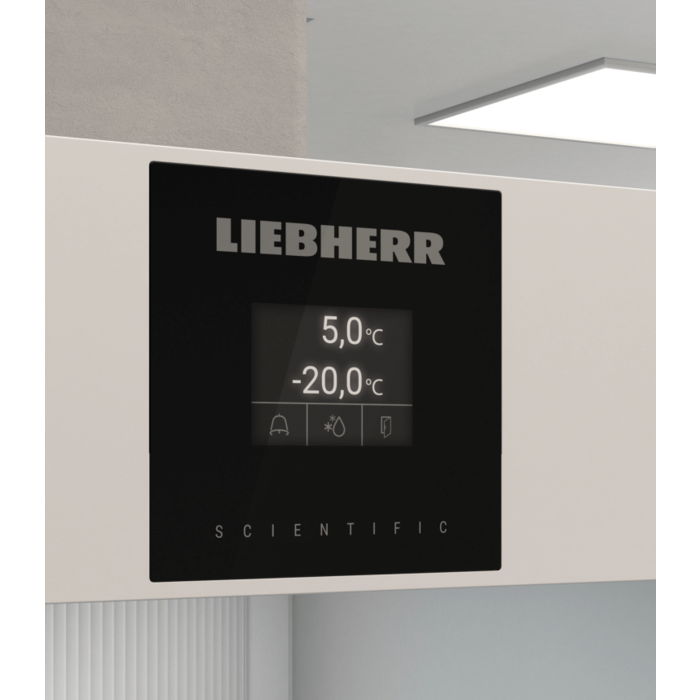

- Display: Digital
- Self-closing door:
- Temperature Recording:
- Temperature alarm:
- Door Alarm:
- Alarm limits adjustable:
- Save MIN / MAX temperatures:
- Low temperature thermo:
- Registration alarms:

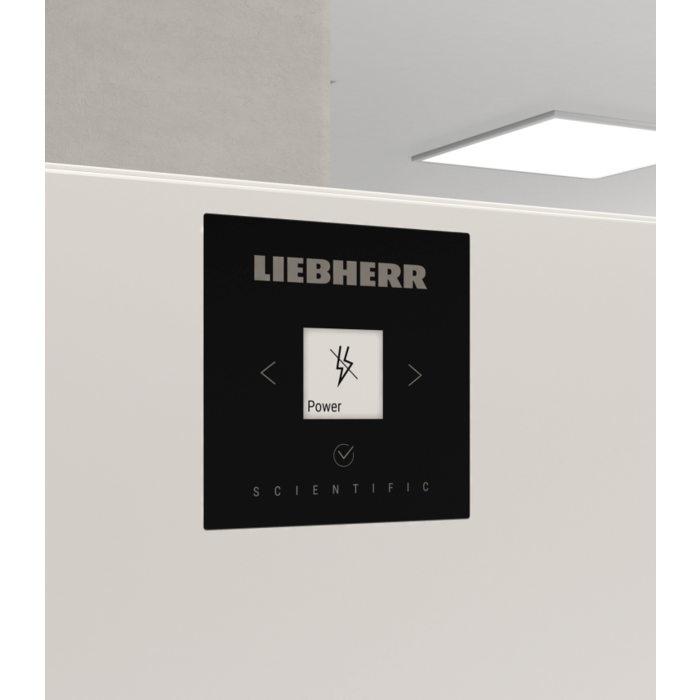

- Power failure alarm:
- Temperature recording during power failure:
- potential-free contact:
- Interface: LAN en USB
- Door hinges: Right, reversible
- Pass-through for sensor:
- Cooling: Dynamic
- automatic defrosting:
- Max. number of drawers: 5
- noise: 49 dB(A)
- Refrigerant: R600a
- Length connecting cable: 240cm
- Spark free:
