LiebherrSCFfg 4002 Performance
- Click here for all specifications of the SCFfg 4002 Performance
- Click here for the user manual of the Liebherr SCFfg 4002 Performance

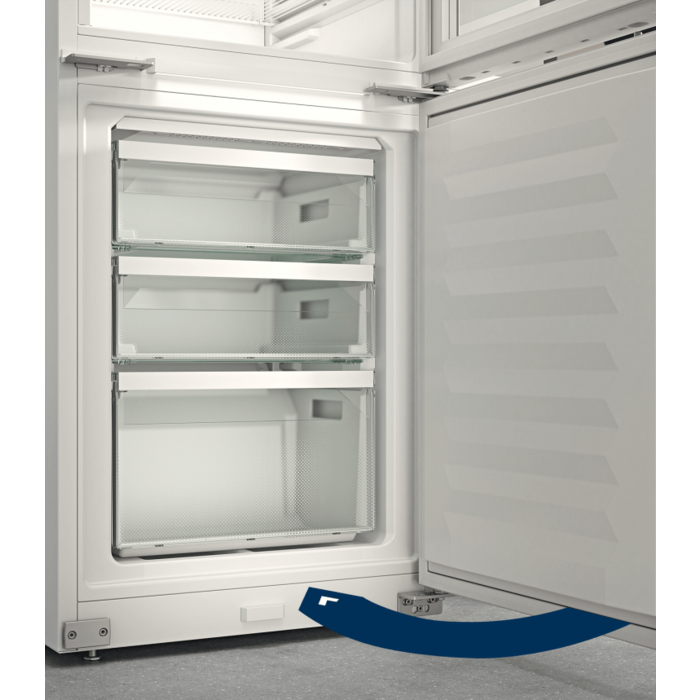

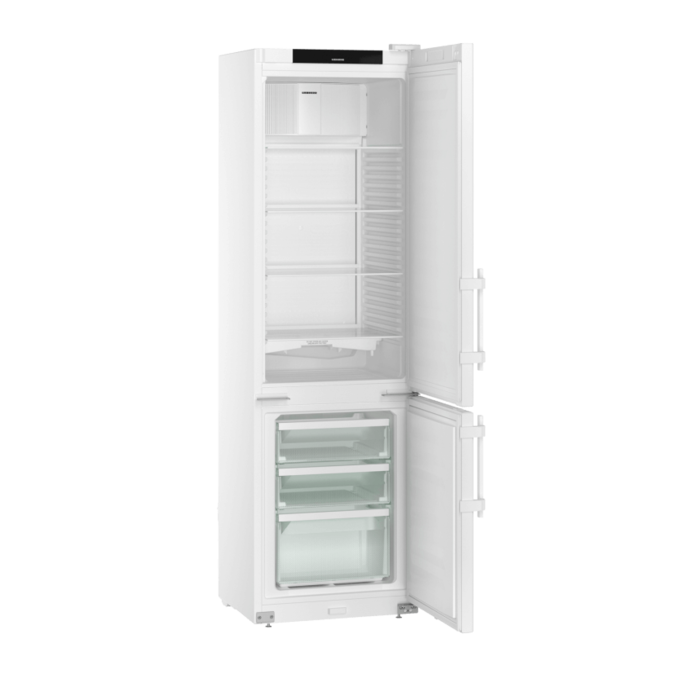

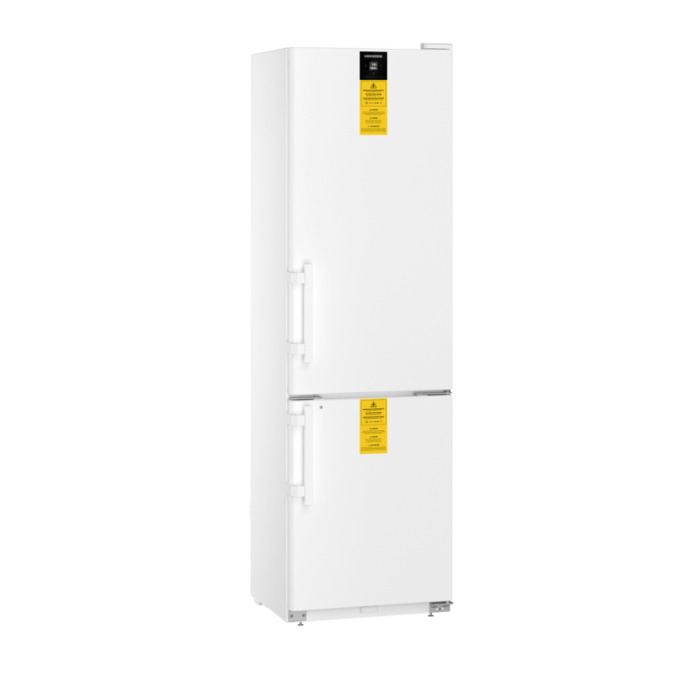

The Liebherr SCFfg 4002 is a steel explosion-proof dynamic refrigerator and static freezer combination. SmartFrost reduces ice formation and makes defrosting easy and less frequent. At a 90° opening angle, the automatically closing door remains open for easy loading and unloading. If the door is open for too long, the LightAlarm ensures that this is quickly noticed and can be remedied.
This laboratory refrigerator is suitable for the professional storage of products at a temperature between 3 °C and 16 °C in the cooling compartment and between -9 °C and -30 °C in the freezer compartment. Typical products that can be stored are research samples, reagents, laboratory inventory, etc. The device complies with the regulations of DIN 13277 for cooling and deep-freeze storage equipment for laboratory and medical applications.
When storing valuable or temperature-sensitive substances or products, the use of an independent, permanently monitored alarm system is required. This alarm system must be designed in such a way that any alarm condition is immediately registered by a responsible person,who can then take appropriate measures
The temperature in the interior of the appliance isset to the required +5 °C as standard and can be adjusted. The minimum permissible room temperature at the installation site is 10 °C.
Cooling temperature setting range | +3°C to +16°C |
Maximum fluctuation cooling section | 2.9 °C |
Gradient cooling section | 3.3 °C |
Heating time from +5 °C to +10 °C (empty, +25 °C TU) | 50 |
Heating time from +25 °C to +5 °C (empty, +25 °C TU) | 30 |
Freezing technology | NoFrost |
Freezing system | Dynamic |
Defrost system freezer compartment | Automatic |
Freezing temperature setting range | -9°C to -30°C |
Number of freezer drawers | 3 |
Maximum fluctuation of the freezer section | 7.6 °C |
Gradient freezer section | 4.3 °C |
Warm-up time from -20 °C to -15 °C (empty, +25 °C TU) | 55 |
Cooling time from +25 °C to -20 °C (empty, +25 °C TU) | 180 |
Number of freezer compartment shelves | 3 |
Material of freezer compartment support tray | Glass |
Load capacity of freezer compartment shelves | 40 kg |
Number of drawers with compartment height | 2x 10.5, 1x 22.9 |
Number of drawers with compartment height | 2x 10.5, 1x 22.9 |
Lighting freezer compartment | LED lighting |
- Brand: Liebherr
- Article number: SCFfg 4002-20
- DIN 13277:
- Exterior dimensions (H/W/D): 2044 x 597 x 654mm
- Gross capacity, total: 420 l
- Under counter:
- Door/Cover material: white
- Energy consumption in 24h: 1.3kWh / 24h
- Build in between:
- Temperaturerange: +3°C tot +16°C
- Doorlock:

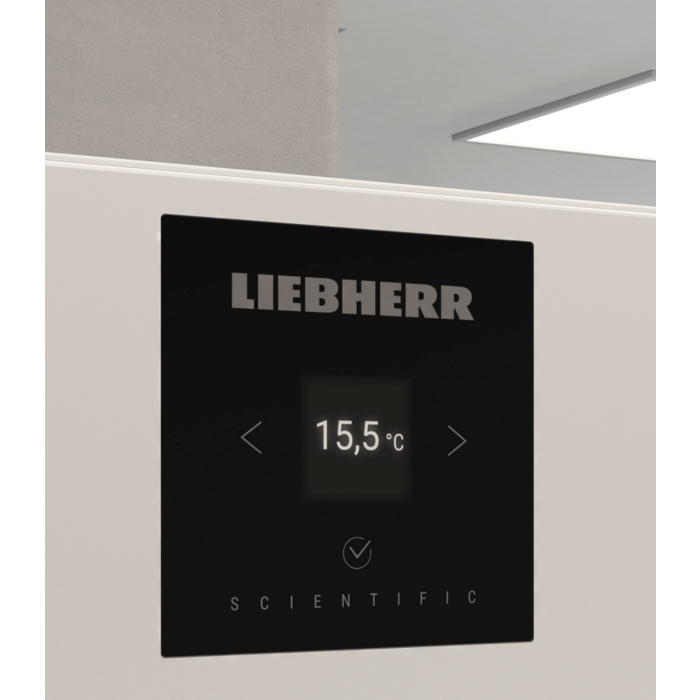

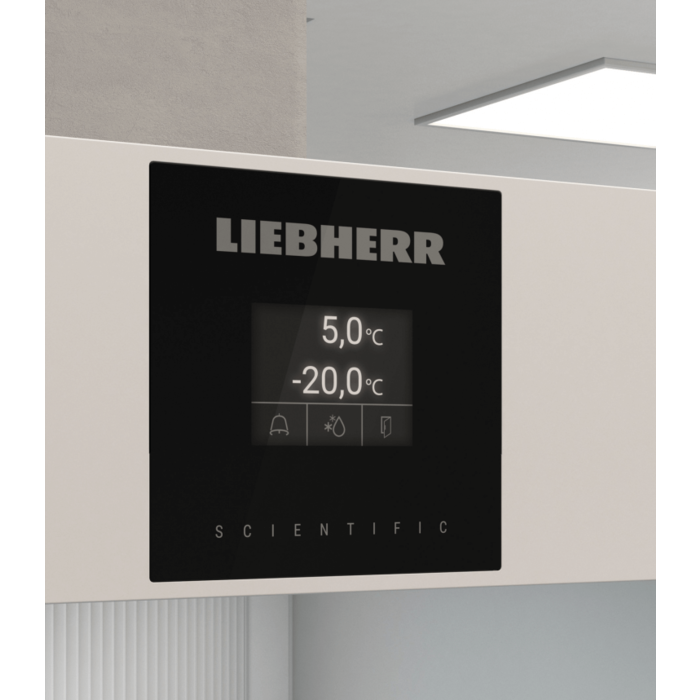

- Display: Digital
- Self-closing door:
- Temperature Recording:
- Temperature alarm:
- Door Alarm:
- Alarm limits adjustable:
- Save MIN / MAX temperatures:
- Low temperature thermo:
- Registration alarms:

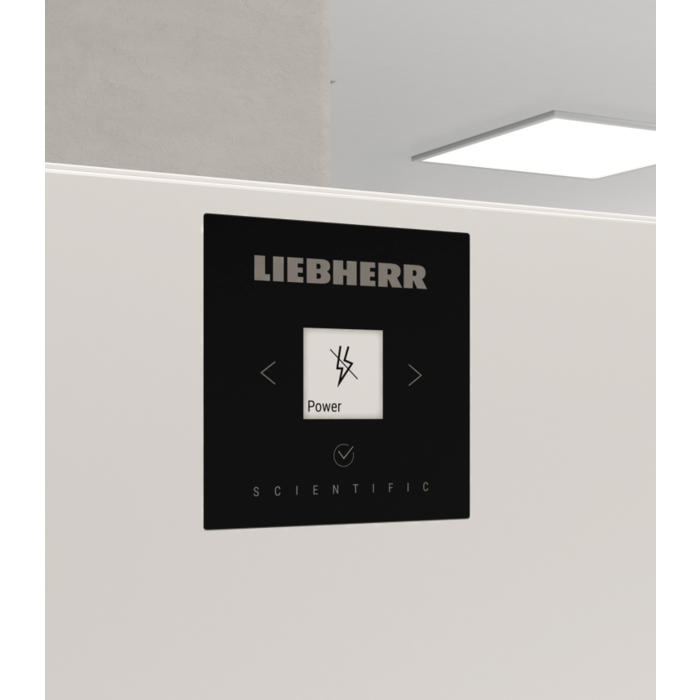

- Power failure alarm:
- Temperature recording during power failure:
- potential-free contact:
- Interface: LAN en USB
- Door hinges: Right, reversible
- Pass-through for sensor:
- Cooling: Dynamic
- automatic defrosting:
- Max. number of drawers: 5
- noise: 49 dB(A)
- Refrigerant: R600a
- Length connecting cable: 240cm
- Spark free:
