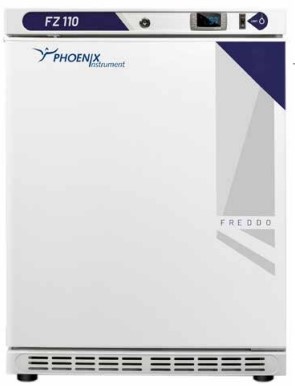

Phoenix FR110 for professional use in the laboratory
This compact laboratory refrigerator is equipped with a digital display, temperature alarm and door contact. The flexible and user-friendly cooling system can be easily adapted to individual needs by setting the internal parameters.
The high-efficiency compressor uses environmentally friendly refrigerant, without CFCs or HCFCs, and complies with Directive 2014/68/EU. This 110-litre model is suitable for installation under a worktop.
The internal ventilation system ensures optimal storage conditions, even for the most sensitive materials, in accordance with EN 60068-3.
An alarm can be indicated by an acoustic signal, a visual message or a potential-free contact.
All appliances are lockable and equipped with internal LED lighting. The doors can also be supplied with a glass panel (FR-G versions only), with a choice of right or left opening direction.
When storing valuable or temperature-sensitive substances or products, the use of an independent, permanently monitored alarm system is required. This alarm system must be designed in such a way that any alarm condition is immediately registered by a responsible person,who can then take appropriate measures
- Article number: TIN-FR110
- DIN 13277:
- Exterior dimensions (H/W/D): 805 x 600 x 560mm
- Gross capacity, total: 110 liter
- Under counter:
- Door/Cover material: white
- Build in between:
- Temperaturerange: +2°C to +8°C
- Doorlock:
- Display: Digital
- Self-closing door:
- Temperature Recording:
- Temperature alarm:
- Door Alarm:
- Alarm limits adjustable:
- Save MIN / MAX temperatures:
- Low temperature thermo:
- Registration alarms:
- Power failure alarm:
- Temperature recording during power failure:
- potential-free contact:
- Interface: RS 485
- Door hinges: Right, reversible
- Pass-through for sensor:
- Cooling: Dynamic
- automatic defrosting:
- noise: dB
- Refrigerant: R600a
- Length connecting cable: 240cm
- Spark free:
